Vibratory bowl feeding

Vibratory bowl feeders for caps and closures.

Custom bowl feeder systems that sort, orient and feed caps, closures and components into capping machines or automated pick points.

Request advice Call 01494 623015

Need the feeder to match your cap and capper?

Send cap samples, photos, target output and the downstream capping machine details. The quickest shortlist starts with real parts, not a generic speed figure.

Send cap details

Specification focus

Use bowl feeding when orientation needs controlled tooling.

A vibratory bowl feeder is useful when caps or closure components must be presented in a repeatable orientation before the next automatic operation. The bowl, track, tooling gates and discharge chute are configured around the real part.

For cap feeding, the bowl has to do more than move parts. It must separate loose caps, reject inverted or wrongly presented closures and maintain enough flow to keep the capper supplied without filling the track too aggressively.

Bowl feeder design is sample-led. The most useful enquiry includes physical caps, photos, dimensions, material, target rate and the required exit orientation.

Custom track geometryTrack and tooling are shaped around the cap, closure or production part.

Orientation and rejectionWrong-way caps can be rejected or corrected before the outlet.

Line-ready dischargeChutes, stands and controls are matched to the capper or pick point.

Close-up

Bowl and drive unit

A closer view of the bowl and drive unit used for controlled part movement.

Samples

Cap samples

Sample caps help confirm whether the bowl route and tooling are practical.

Components

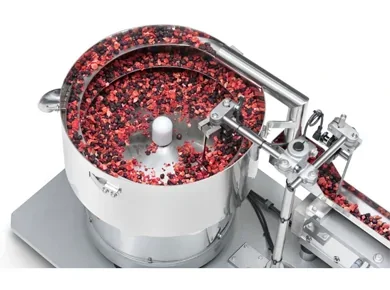

Component feeding

The same sample-led logic applies to small parts and components as well as caps.

Selection table

Information that changes the feeder design.

Detail	Why it matters	What to send
Closure geometry	Controls whether caps can be separated, sorted and held in a stable orientation.	Photos, samples, diameter, height, skirt depth, material and any liner details.
Required presentation	The same cap may need different exit orientation depending on the capping head.	Correct orientation, chute angle, pick point, capper type and discharge height.
Target output	The feeder must exceed realistic production speed without flooding the track.	Caps per minute, bottles per hour, planned shifts and expected efficiency.
Changeover range	Multiple closures can require adjustable tooling or dedicated change parts.	All cap sizes, SKU frequency and whether quick changeover is important.

Connected Lancing routes

Built to sit beside the wider Lancing machinery network.

The site now links cap feeding intent to bowl feeder specification, capping machine selection and wider bottle-line planning.

Bowl feeding

Vibratory bowl feeder specification

Use the bowl feeder route when the cap or component needs sample-based tooling, orientation and a stable discharge point.

Visit bowlfeeders.co.uk

Capping

Capper selection and closure type

Use the capping machinery route when the project also needs screw, pump, trigger, ROPP, press-on or complete capping equipment.

Visit cappingmachinesuk.co.uk

Line planning

Filling, capping and labelling context

Use the Lancing UK route when the feeder is part of a wider packaging line, retrofit, installation or project-planning brief.

Visit lancinguk.online

FAQs

Questions about vibratory bowl feeders.

What does a vibratory bowl feeder do?

A vibratory bowl feeder uses vibration, track geometry and tooling to move loose parts into a consistent orientation before discharge.

Can bowl feeders handle pumps and triggers?

Sometimes, but pumps and triggers need sample assessment because tubes, nozzles and offset shapes can tangle or destabilise.

Can the bowl be adjusted for several caps?

Some ranges can be adjustable, but multiple cap shapes may need dedicated tooling or change parts.

Engineering SEO detail

Vibratory cap bowl feeder design depends on the track, reject logic and handover.

A bowl feeder can be the right cap feeding route when the cap has enough geometry for reliable orientation and the downstream capper can accept a controlled discharge. The added content separates cap bowl feeding from general parts feeding while keeping the capper interface in view.

Track tooling

Tooling is part-specific

The track, gates and rejects are shaped around the cap, so small differences in skirt, ribs or liner can change the design.

Cap feed bowl route

Cap quality

Avoid avoidable scuffing

Decorative caps and visible closures should be checked for contact marks, track pressure and repeated recirculation.

Gentle handling checks

Discharge

Match the capper chute

A stable bowl exit still needs a compatible chute, height, angle and cap-in-chute control before the capping head.

Chute checks

Specification evidence

Information Lancing should check before final feeder selection.

These checks improve quotation quality without assuming unsupported speeds, capacities or format ranges.

Check	Why it matters	Useful evidence to send
Cap orientation	The bowl needs a repeatable way to reject or correct wrong-way caps.	Required orientation, top/underside photos and samples showing the usable orientation feature.
Sample variation	Production variation can affect track performance more than one perfect sample.	Samples from normal production batches, including any colour, finish or supplier variation.
Noise and access	Bowl size, speed and guards influence operator access, cleaning and maintenance.	Installation space, operator side, access limits and cleaning expectations.
Outlet control	The downstream chute must not overload or starve the capper.	Capper photos, chute route, handover height and preferred sensor/control arrangement.

Cap orientation bowl feedersFocus on orientation and wrong-way rejection.Custom bowl feeders for capsSample-led track and tooling checks.Send samplesWhat to send before a realistic design discussion.

Send cap details Call 01494 623015

Buyer questions

Practical questions before ordering a cap feeding system.

When is a vibratory bowl feeder suitable for caps?

It is suitable when the cap can be separated, oriented and discharged reliably using tooling around the physical part.

What can make a bowl feeder unsuitable?

Very awkward closure geometry, high scuffing sensitivity, excessive tangling, poor orientation features or limited space can point to another feeding route.

Do bowl feeders need real samples?

Yes. Samples are important because the bowl track and reject features are designed around how the cap behaves in motion.

Can one bowl run different cap sizes?

Sometimes, but the format range must be checked carefully and may require adjustment points or dedicated change parts.
